ISOFLEX • Insulated flexible duct
£49.39 GBP
£49.39 GBP
Tax included. Shipping calculated at checkout.

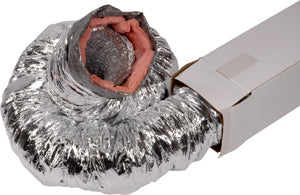

Isoflex is made of Aluflex inner duct as the basic duct, thermal insulation of 25mm thick glass wool and an external jacket made of polyester laminated with aluminium foil. Due to its exceptional flexibility it is easy to install on circular and oval connectors.

Application

  • The Isoflex flexible ducts are lightweight flexible, thermally insulated and are used in ventilation, air conditioning, and air handling systems where high mechanical strength, temperature resistance, and high thermal insulating qualities are required

Composition

  • Inner core: Multi-layer of Aluminium and Polyester
  • Insulation: Glass wool with 25mm thick and 16 kg/m3 density
  • Outer core: Multi-layer of Aluminium and Polyester

Specification

  • Temperature range: - 30°C + 120°C
  • Air velocity (max): 30 m/s
  • Operating pressure (max): 2500 Pa
  • Diameter range: 82 mm - 508 mm
  • Fire resistance: FR (NF) M1
  • In the event of a fire no toxic gases are emitted

Packaging

  • Standard length of 10 m is compressed in an individual, reinforced cardboard box

Chemical resistence

  • Good resistance to many solvents
  • Moderate resistance to acid

Accessories

  • Aluminium Tape ALUMINIUM FOIL TAPE
  • Clamps MCA
  • Steel Banding CRA
  • Steel Banding Locks SCA

Other available products

Aluflex Non-Insulated flexible, Combiflex Combi flexible, Sonoflex Acoustic flexible

Order Example

  • Isoflex254



Explanation :

Isoflex = Type of flexible duct

254 = Diameter of flexible duct


https://www.sksales.co.uk/pdf/UK/DS/UK-EN-C02.030.SK.A11-ISOFLEX.pdf


Product Variant & Price Selector

1) Type [mm]: Isoflex | Diameter [mm]: 82 | Length [m]: 10, 2) Type [mm]: Isoflex | Diameter [mm]: 102 | Length [m]: 10, 3) Type [mm]: Isoflex | Diameter [mm]: 127 | Length [m]: 10, 4) Type [mm]: Isoflex | Diameter [mm]: 152 | Length [m]: 10, 5) Type [mm]: Isoflex | Diameter [mm]: 160 | Length [m]: 10, 6) Type [mm]: Isoflex | Diameter [mm]: 165 | Length [m]: 10, 7) Type [mm]: Isoflex | Diameter [mm]: 185 | Length [m]: 10, 8) Type [mm]: Isoflex | Diameter [mm]: 203 | Length [m]: 10, 9) Type [mm]: Isoflex | Diameter [mm]: 229 | Length [m]: 10, 10) Type [mm]: Isoflex | Diameter [mm]: 254 | Length [m]: 10, 11) Type [mm]: Isoflex | Diameter [mm]: 280 | Length [m]: 10, 12) Type [mm]: Isoflex | Diameter [mm]: 305 | Length [m]: 10, 13) Type [mm]: Isoflex | Diameter [mm]: 315 | Length [m]: 10, 14) Type [mm]: Isoflex | Diameter [mm]: 356 | Length [m]: 10, 15) Type [mm]: Isoflex | Diameter [mm]: 406 | Length [m]: 10, 16) Type [mm]: Isoflex | Diameter [mm]: 457 | Length [m]: 10, 17) Type [mm]: Isoflex | Diameter [mm]: 508 | Length [m]: 10
