COMBIFLEX • Combi flexible duct
£0.00 GBP
£0.00 GBP
Tax included. Shipping calculated at checkout.

Combiflex is a flexible duct distinguished by it's hardness, high flexibility and extremely strong multi-layer walls and it is designed for various application fields. the duct is made of multi-layer polyester laminated aluminium and PVC foil reinforced with high tension steel wire. Due to its exceptional flexibility can be easy installed to round and oval connectors.

Application

  • The Combiflex flexible ducts are used in ventilation, air conditioning, and air handling systems with low and medium air pressure where a high mechanical strength is required.

Composition

  • Multi-layer of Aluminium, Polyester and PVC Black
  • Steel Wire

Specification

  • Temperature range: - 30°C + 120°C
  • Air velocity (max): 30 m/s
  • Operating pressure (max): 2500Pa
  • Diameter range: 82 mm - 508 mm
  • Standard Length: 6 m

Packaging

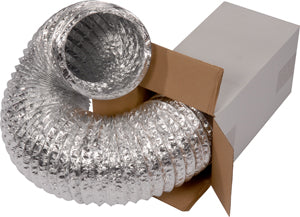

  • Standard length of 6 m is compressed in an individual, reinforced box 0.6 m.

Chemical resistence

  • Good resistance to many solvents

Accessories

  • Aluminium Tape ALUMINIUM FOIL TAPE
  • Clamps MCA
  • Steel Banding CRA
  • Steel Banding Locks SCA

Other Available Products

Aluminium flexible Aluflex, Insulated flexible Isoflex, Acoustic flexible Sonflex

Order Example

  • Combiflex254



Explanation :

Combiflex = Type of Flexible duct

254 = Diameter of flexible duct



https://www.sksales.co.uk/pdf/UK/DS/UK-EN-C02.020.3D.SK.C11-COMBIFLEX.pdf



Product Variant & Price Selector

1) Type: AWFDC102 | Diameter [mm]: 102, 2) Type: AWFDC127 | Diameter [mm]: 127, 3) Type: AWFDC152 | Diameter [mm]: 152, 4) Type: AWFDC165 | Diameter [mm]: 165, 5) Type: AWFDC182 | Diameter [mm]: 182, 6) Type: AWFDC203 | Diameter [mm]: 203, 7) Type: AWFDC229 | Diameter [mm]: 229, 8) Type: AWFDC254 | Diameter [mm]: 254, 9) Type: AWFDC284 | Diameter [mm]: 284, 10) Type: AWFDC305 | Diameter [mm]: 305, 11) Type: AWFDC315 | Diameter [mm]: 315, 12) Type: AWFDC356 | Diameter [mm]: 356, 13) Type: AWFDC405 | Diameter [mm]: 405, 14) Type: AWFDC457 | Diameter [mm]: 457, 15) Type: AWFDC508 | Diameter [mm]: 508, 16) Type: AWFDC568 | Diameter [mm]: 568, 17) Type: AWFDC610 | Diameter [mm]: 610
