GREYFLEX • Fabric flexible duct
£0.00 GBP
£0.00 GBP
Tax included. Shipping calculated at checkout.

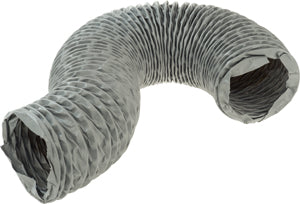

Greyflex duct is made of polyester fabric, both sides coated with PVC reinforced with a spiral high tension steel wire. Due to its exceptional flexibility can be easy installed on round and oval connectors.

Application

  • Greyflex is made for low and medium pressure ventilation and air conditioning systems.

Composition

  • One layer of 280 g/m2 Polyester Rega, both sides coated with PVC
  • Steel wire

Specification

  • Temperature range: -30°C +70°C
  • Maximum air velocity (max): 30 m/sec
  • Diameter range: 82 mm to 635 mm

Packaging

  • Standard length of 6 m is compressed in an individual reinforced box

Chemical resistence

  • The resistance decreases, if the relative air humidity of the air with chemicals, which has to be transported increases

Accessories

  • Aluminium Tape ALUMINIUM FOIL TAPE
  • Clamps MCA
  • Steel Banding CRA
  • Steel Banding Locks SCA

Other Available Products

Aluflex Aluminium flexible, Isoflex Insulated flexible, Combiflex Combi flexible, Sonoflex Acoustic flexible

Order Example

  • Greyflex254



Explanation :

Greyflex= Type of flexible duct

254 = Diameter of flexible duct

https://www.sksales.co.uk/pdf/UK/DS/UK-EN-.TFC02.020.1.sk.-GREYFLEX.pdf

Product Variant & Price Selector

1) Type [mm]: Greyflex | Diameter [mm]: 82 | Length [m]: 6, 2) Type [mm]: Greyflex | Diameter [mm]: 102 | Length [m]: 6, 3) Type [mm]: Greyflex | Diameter [mm]: 127 | Length [m]: 6, 4) Type [mm]: Greyflex | Diameter [mm]: 152 | Length [m]: 6, 5) Type [mm]: Greyflex | Diameter [mm]: 160 | Length [m]: 6, 6) Type [mm]: Greyflex | Diameter [mm]: 180 | Length [m]: 6, 7) Type [mm]: Greyflex | Diameter [mm]: 203 | Length [m]: 6, 8) Type [mm]: Greyflex | Diameter [mm]: 229 | Length [m]: 6, 9) Type [mm]: Greyflex | Diameter [mm]: 254 | Length [m]: 6, 10) Type [mm]: Greyflex | Diameter [mm]: 280 | Length [m]: 6, 11) Type [mm]: Greyflex | Diameter [mm]: 305 | Length [m]: 6, 12) Type [mm]: Greyflex | Diameter [mm]: 315 | Length [m]: 6, 13) Type [mm]: Greyflex | Diameter [mm]: 355 | Length [m]: 6, 14) Type [mm]: Greyflex | Diameter [mm]: 406 | Length [m]: 6, 15) Type [mm]: Greyflex | Diameter [mm]: 457 | Length [m]: 6, 16) Type [mm]: Greyflex | Diameter [mm]: 508 | Length [m]: 6
