ALUFLEX • Aluminium flexible duct
£15.16 GBP
£15.16 GBP
Tax included. Shipping calculated at checkout.

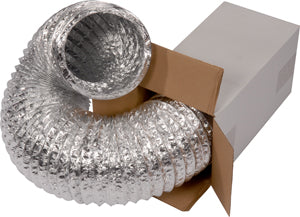

Aluflex is a lightweight flexible non-insulated air duct made of multilayer, polyester laminated aluminium foil reinforced with spiral high tension steel wire. Due to its exceptional flexibility can be easy installed on round and oval connections.

Application

  • The Aluflex flexible ducts are used in ventilation, air conditioning, and air handling systems with low and medium air pressure where a high mechanical strength is required.

Composition

  • Multilayer of Aluminium and polyester
  • Steel wire

Specification

  • Temperature range: from - 30 °C to + 130 °C
  • Air velocity (max): 30 m/s
  • Operating pressure (max): 2300Pa
  • Diameter range: 80 mm - 500 mm
  • Standard length: 10m

Packaging

  • Standard length of 10 m is compressed in an individual, reinforced cardboard box 0.6 m

Chemical resistance

  • Good resistance to many solvents
  • Moderate resistance to acid and base

Accessories

  • Aluminium Tape ALUMINIUM FOIL TAPE
  • Clamps MCA
  • Steel Banding CRA
  • Steel Banding Locks SCA

Other Available Products

  • Insulated flexible Izotex, Combi flexible Texoflex Combi, Acoustic Flexible Sonotex

Order Example

  • Aluflex254



Explanation :

Aluflex = Type of flexible duct

254 = Diameter of flexible duct



https://www.sksales.co.uk/pdf/UK/DS/UK-EN-C02.010.4.SK.A11-ALUFLEX.pdf

Product Variant & Price Selector

1) Type: Aluflex | Diameter [mm]: 82, 2) Type: Aluflex | Diameter [mm]: 102, 3) Type: Aluflex | Diameter [mm]: 127, 4) Type: Aluflex | Diameter [mm]: 152, 5) Type: Aluflex | Diameter [mm]: 160, 6) Type: Aluflex | Diameter [mm]: 185, 7) Type: Aluflex | Diameter [mm]: 203, 8) Type: Aluflex | Diameter [mm]: 229, 9) Type: Aluflex | Diameter [mm]: 254, 10) Type: Aluflex | Diameter [mm]: 305, 11) Type: Aluflex | Diameter [mm]: 315, 12) Type: Aluflex | Diameter [mm]: 356, 13) Type: Aluflex | Diameter [mm]: 406, 14) Type: Aluflex | Diameter [mm]: 457, 15) Type: Aluflex | Diameter [mm]: 508
