Spiral duct & fittings
View Product details
product-img
ST • Spiral Duct
£62.69 GBP
£62.69 GBP
Tax included. Shipping calculated at checkout.

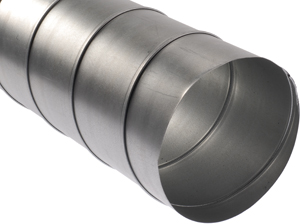

Circular spiral duct with standard length of 3M, spiral wound tube rolled from prime steel (certified) hot dipped galvanised, with flat folded joint to obtain rigidity and airtightness.

Structural strength & performance to DW144 classes A, B, C and BS EN 12237 A, B, C.

The airtightness class can also determined by the installation.

Application

  • Used for air supply and exhaust in ventilation and air conditioning systems

Material

  • Hot dip galvanized steel

Specifications

  • Negative pressure -750 Pas to BS12237
  • Positive pressure 2000 Pas to DW146
  • Max temp. of 70°C
  • Hot dipped Galvanized to BS EN 10346 G140/275
  • Zinc Layer with average thickness of 20µ
  • Caution! Due to the fact that spiral ducts are manufactured in different batches, colour difference can occur

Accessories

  • Male Connector V
  • Split Ring SPLIT RING
  • Suspension Ring OBDC
  • Self Drilling Screws SDS

Order example

  • ST-250



Explanation:

  • ST = Duct type L= 3m
  • 250 = Diameter of the duct



https://www.sksales.co.uk/product/04/047154397bfcdb04de7ae5.pdf



Product Variant & Price Selecto

Type [mm]: ST-80 Spiral Duct | Diameter [mm]: 80 | Length [m]: 3, Type [mm]: ST-100 Spiral Duct | Diameter [mm]: 100 | Length [m]: 3, Type [mm]: ST-125 Spiral Duct | Diameter [mm]: 125 | Length [m]: 3, Type [mm]: ST-150 Spiral Duct | Diameter [mm]: 150 | Length [m]: 3, Type [mm]: ST-160 Spiral Duct | Diameter [mm]: 160 | Length [m]: 3, Type [mm]: ST-180 Spiral Duct | Diameter [mm]: 180 | Length [m]: 3, Type [mm]: ST-200 Spiral Duct | Diameter [mm]: 200 | Length [m]: 3, Type [mm]: ST-224 Spiral Duct | Diameter [mm]: 224 | Length [m]: 3, Type [mm]: ST-250 Spiral Duct | Diameter [mm]: 250 | Length [m]: 3, Type [mm]: ST-280 Spiral Duct | Diameter [mm]: 280 | Length [m]: 3, Type [mm]: ST-300 Spiral Duct | Diameter [mm]: 300 | Length [m]: 3, Type [mm]: ST-315 Spiral Duct | Diameter [mm]: 315 | Length [m]: 3, Type [mm]: ST-355 Spiral Duct | Diameter [mm]: 355 | Length [m]: 3, Type [mm]: ST-400 Spiral Duct | Diameter [mm]: 400 | Length [m]: 3, Type [mm]: ST-450 Spiral Duct | Diameter [mm]: 450 | Length [m]: 3, Type [mm]: ST-500 Spiral Duct | Diameter [mm]: 500 | Length [m]: 3, Type [mm]: ST-560 Spiral Duct | Diameter [mm]: 560 | Length [m]: 3, Type [mm]: ST-600 Spiral Duct | Diameter [mm]: 600 | Length [m]: 3, Type [mm]: ST-630 Spiral Duct | Diameter [mm]: 630 | Length [m]: 3, Type [mm]: ST-710 Spiral Duct | Diameter [mm]: 710 | Length [m]: 3, Type [mm]: ST-800 Spiral Duct | Diameter [mm]: 800 | Length [m]: 3, Type [mm]: ST-900 Spiral Duct | Diameter [mm]: 900 | Length [m]: 3, Type [mm]: ST-1000 Spiral Duct | Diameter [mm]: 1000 | Length [m]: 3, Type [mm]: ST-1120 Spiral Duct | Diameter [mm]: 1120 | Length [m]: 3, Type [mm]: ST-1250 Spiral Duct | Diameter [mm]: 1250 | Length [m]: 3
