GAS • Gasket tapes

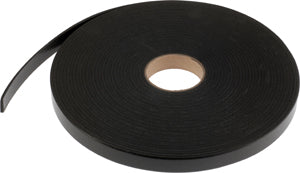

Gasket tape

• SUFIX

• To ensure an airtight sealing between ducts and other HVAC components.

• Cross linked polyethylene foam with completely closed cells and one adhesive side
• Carrier: Polyethylene foam
• Density: 33 kg/m³
• Colour: Anthracite
• Tensile strength:
• Longitudinal: max. 400 kPa
• Transversal: max. 265 kPa
• Temperature resistance: -80° + 100°C
• Elongation:
• Longitudinal: 130%
• Transversal: 125%
• Compression strength:
• Compression 10%: 19 kPa
• Compression 25%: 40 kPa
• Compression 50%: 100 kPa
• Thermal conductivity:
• At 10°C: 0,034 W/mk
• At 40°C: 0,039 W/mk
• Water absorption: At 7 days < 1 vol %
• Water vapour transmission: 1,1 g/m²/24h

• Thickness of 4 mm and 6 mm
• Widths of 9 mm, 12 mm, 15 mm and 25 mm
